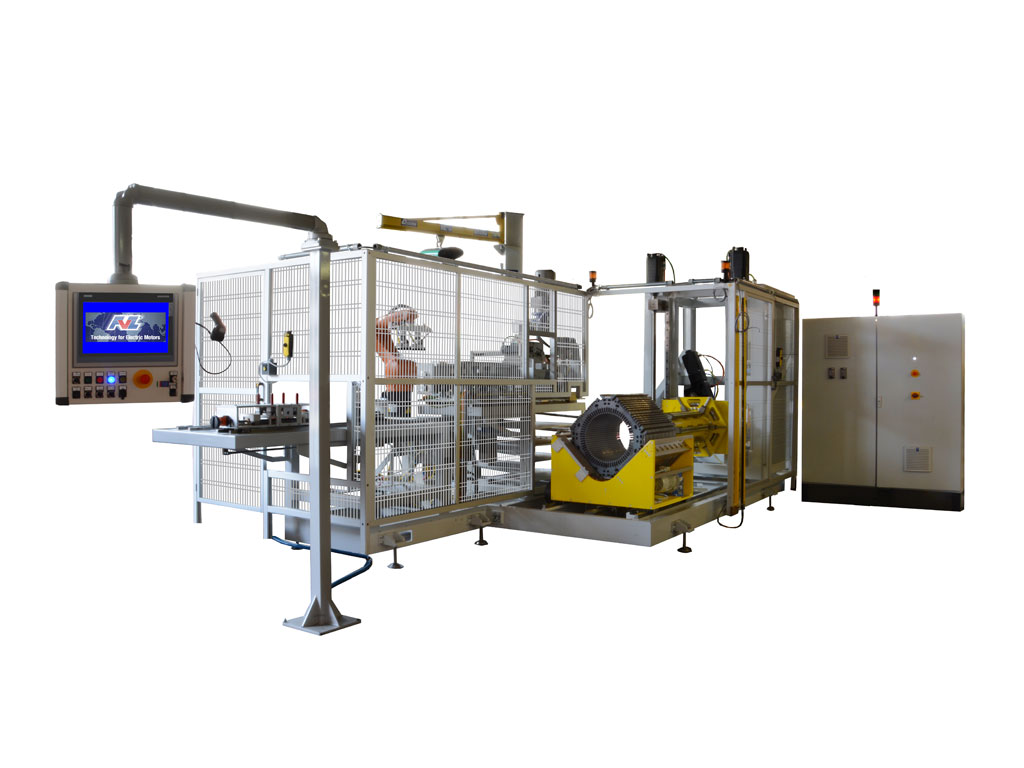

HLG 700 E

SLOT BOTTOM INSULATING MACHINE

Desing for insertion of insulating material into big dimension stator slot.

Insulating material to be cut with thickness from 0,30 up to 0,65 mm.

Adjustable folded edge from 8 mm to 14 mm.

Loading of stator in horizontal in automatic.

Loading of insulating material in automatic with robot.

Operator pannel, with possibility to set 300 programs.

Dimension of the stator: Ø int. min.= 300 mm. - Ø est. max. 700 mm. – stack height from 300 to 900 mm.

Machine in regulation with CE standard.
