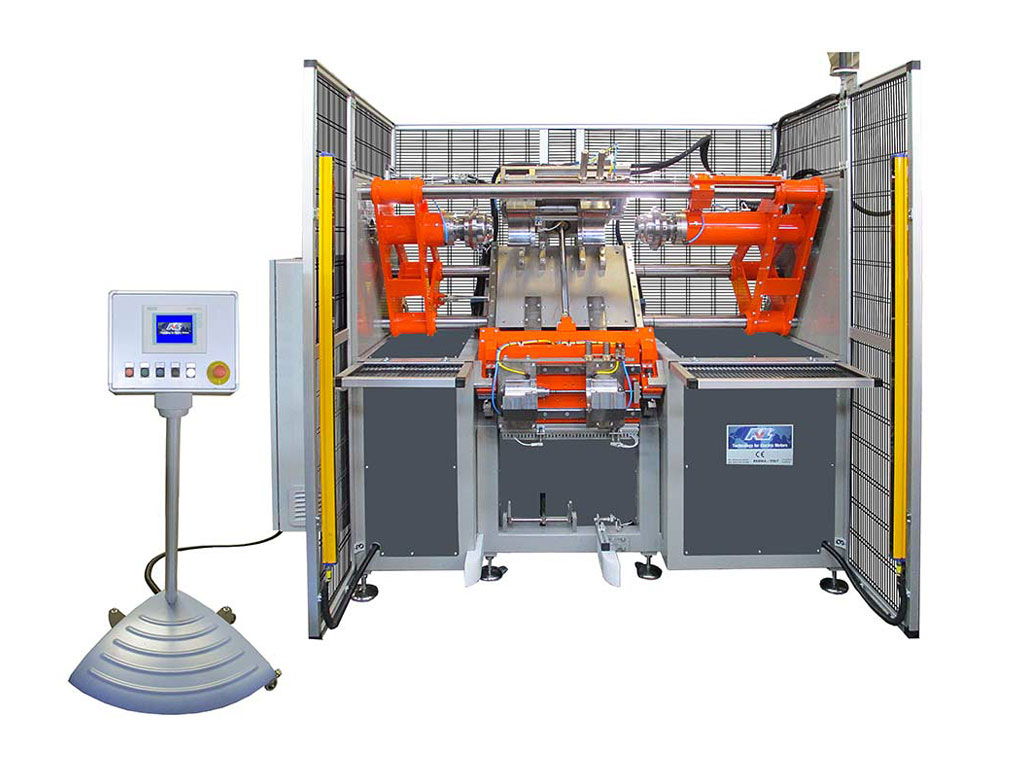

FOF/FOP 250

FORMING MACHINE

Machine suitable for pre–forming and final forming of small stators copper head.

Working cycle in automatic or manual.

Tooling movement are controlled from an hydraulic unit, therefore the positioning is made from precise linear transducer.

Forming force up to 4500 kg

Possibility to do the tooling changover in automatic in about 2 minutes.

Min. int. diameter 50 mm - max. est. diameter 250 mm - stator length: min. - max. 50 - 250 mm.

Machine in accordance with CE standards.
