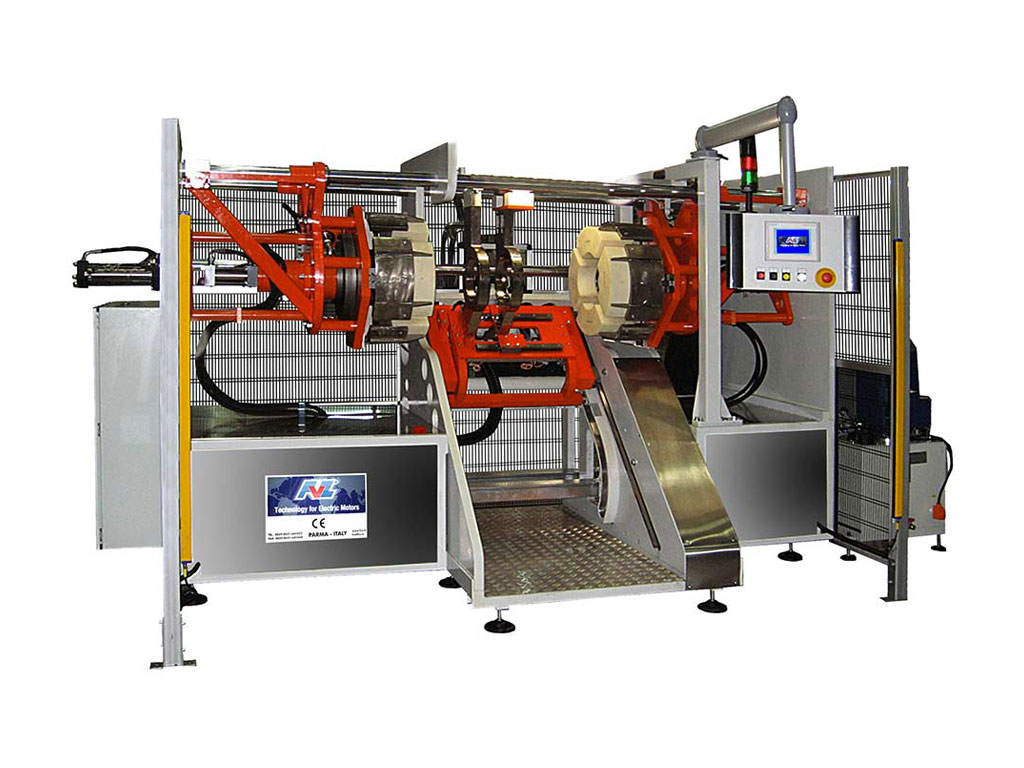

FOF 400

FORMING MACHINE

Machine suitable for final forming of big stators copper head.

Working cycle in automatic or manual.

Tooling movement are controlled from an hydraulic unit, therefore the positioning is made from precise linear transducer.

Forming force up to 8000 kg.

Tooling changover in manual in about 30 minutes.

Min. int. diameter 150 mm - max. est. diameter 450 mm - stator length: min. - max  100 - 450 mm.

Machine in accordance with CE standards.
