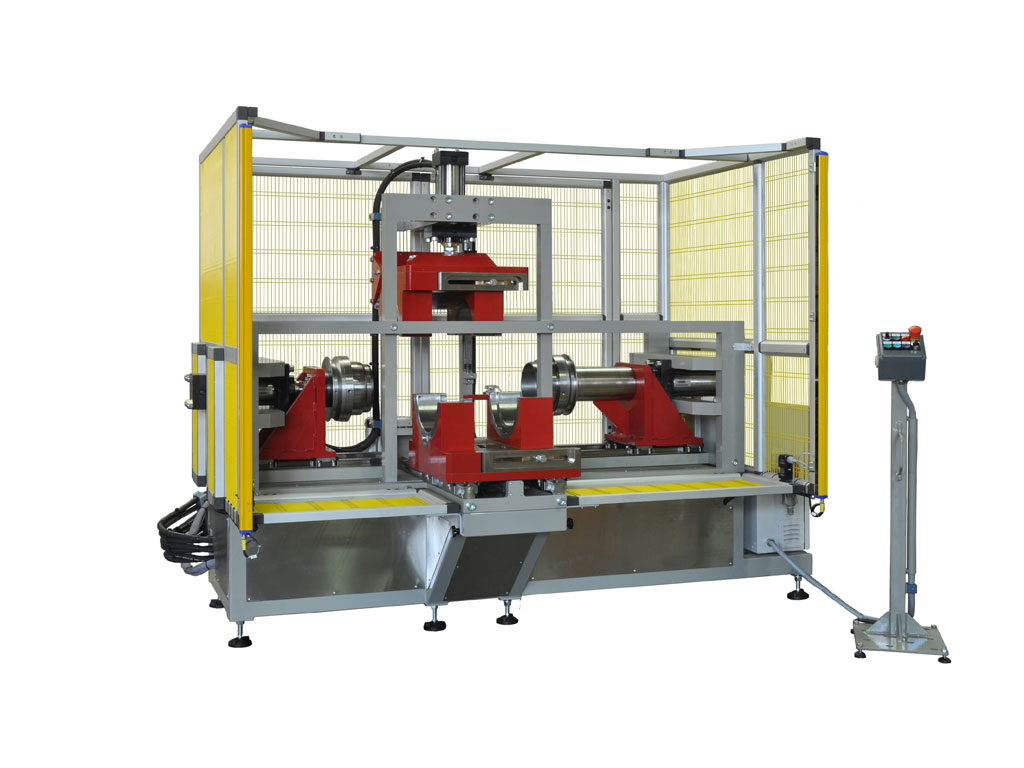

FOF 350

HYDRAULIC HORIZONTAL FORMING MACHINE

Ahydraulic horizontal forming machine for the shape of electric motors copper head with small and medium dimensions.

Loading/unloading in horizontal in manual.

Machine can perform pre-forming or final forming according with the type of tooling used on the machine.

Machine movememt controlled by PLC and operator control panel.

Automatic horizontal slide to bring the stator in forming position.

Tooling movement controlled from hydraulic unit with ISO hydraulic cylinder.

Tolling positioning with sensor manually positioned.

Tooling change in 25 minutes.

Stator dimensions: min int. ø 100 mm – max est. ø 350 mm – stack height from 100 mm to 300 mm.

Machine in regulation with CE standard.
