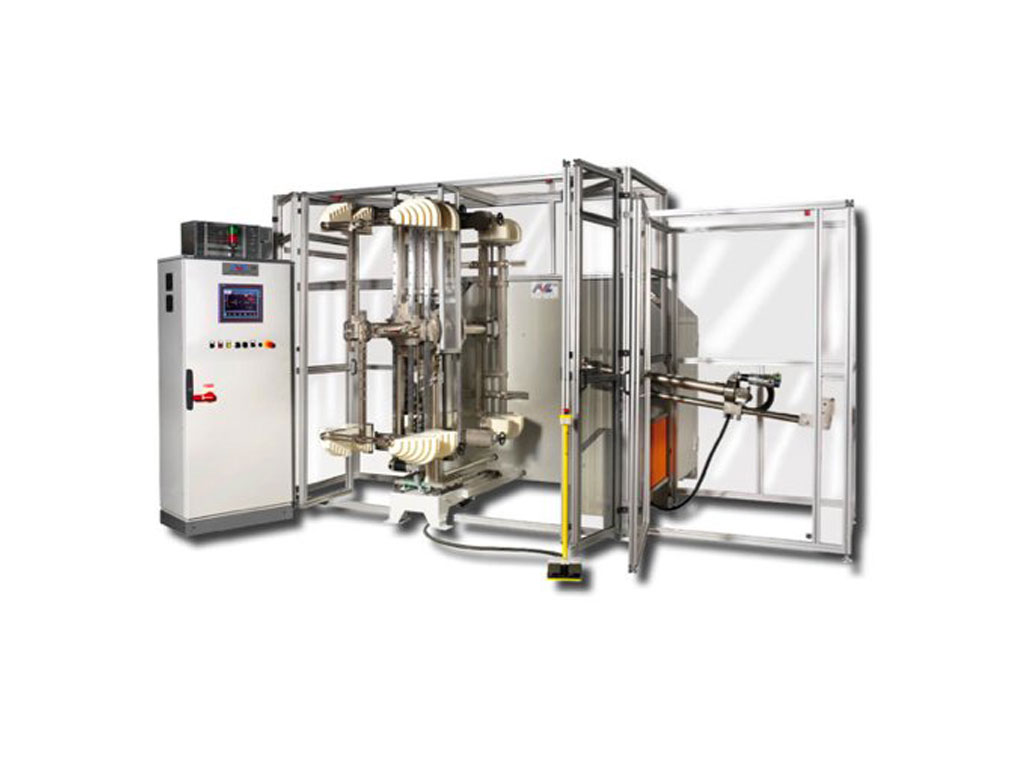

CGM 24 PC 1500

DOUBLE HEAD COIL WINDING MACHINE

Machine designed to wind medium and big coils.

Pneumatic double-head ball bearing centre with pedal control.

While the machine performs the winding cycle on one head, the operator can discharge the completed coils from the other head; this operation is made easier by the two spindle drive, which allows the concentric approaching of winding-holders. Machine controlled by PC, with possibility to store for each one: number of revolution for each coil, number of coils, wire diameter for a perfect stratification, stratification width, stop, slowing down. Broken wire detection signal, connected to wire tentioner.

Coil diameter up to 2000 mm (over 2000 mm  upon request), possibility to handle several wires in parallel 1 or 2 wires guides -variable speed from 0 to 250 RPM. The working programme includes an option to fit the insulating tube automatically.

Protection according to CE standards.
