BR 4P 600

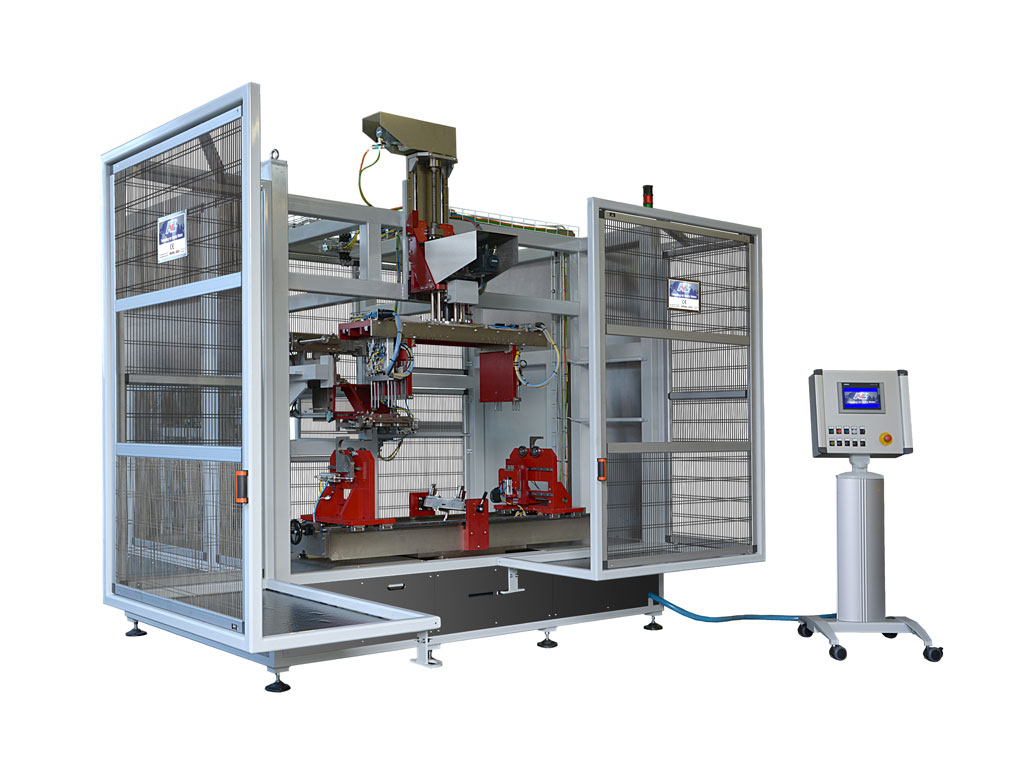

ROTOR ELECTRONIC COIL WINDING MACHINE

Winding made with flat copper wire.

Winding rotation speed can vary from 0 to 25 rpm.

The rotation direction can be clockwise and counter clockwise.

Rotors are manually loaded and unloaded in horizontal.

Connection and cut the copper wire must be done manually at every start and end winding cycle.

Pole change completely in automatic.

Possibility to start winding from any pole (1 - 2 - 3 - 4). Ability to create during winding a “AIR GAP” at each pole.

Supplied with n. 1 rotors preparation table with one unloading area and the area of preparation. Flat wire unwinding system with 2 reel support necessary for quick change of wire. Wire tensioner at 2 positions. Each position is supply with magnetic brake and the wire tension adjustable from operator panel.

Dimensions of rotors from: min est. rotor Ø 350 mm - max est rotor Ø 600 mm - min stack height 400 mm - max stack height 1000 mm.

Protection according to CE standards.
